Fivics Skadi-TX Recurve Riser 25″

Fivics’ Brand New Product Line: The Skadi Series!

Tungsten weights are inserted into the riser to add a subtle balance shift, optimizing the distribution. The Skadi-TX is designed with soft curves which minimizes unwanted movement of the bow at release. The Skadi-TX debuts the new ‘VACP’ plate which can be adjusted forwards and backwards, allowing for fine tuning to optimize arrow flight.

Fivics has created a new grip specific for the Skadi Series. The Fivics TSG(Tight and Secure Grip) is designed to maximise the contact between the archer’s bow hand and the grip. This grip was produced in an optimal shape specializing in close contact by analyzing the direction between the hand and the grip in three dimensions as well as analyzing the direction of the force received by the bow hand during anchoring.

The Limb Alignment System In 0.05mm:

Normally, limb alignment with the washer system is able to adjust in 0.1mm increments; Fivics’ ultra-precise limb alignment system can adjust 0.05mm to 0.15mm, offering double the amount of precision.

Easy & Stable Centre Adjustment:

Perform bow centre adjustments without disassembling the riser and limb alignment system. The limb alignment system allows a strong fixing force with only one locking bolt.

Using The Limb Alignment System:

1 – Loosen the locking bolt

2 – If string is:

          Left of centre: Loosen the adjustment bolt and the right set screw. Tighten the left set screw to move the limb to the right.

          Right of centre: Loosen the adjustment bolt and the left set screw. Tighten the right set screw to move the limb to the left.

3 – Tighten the locking bolt.

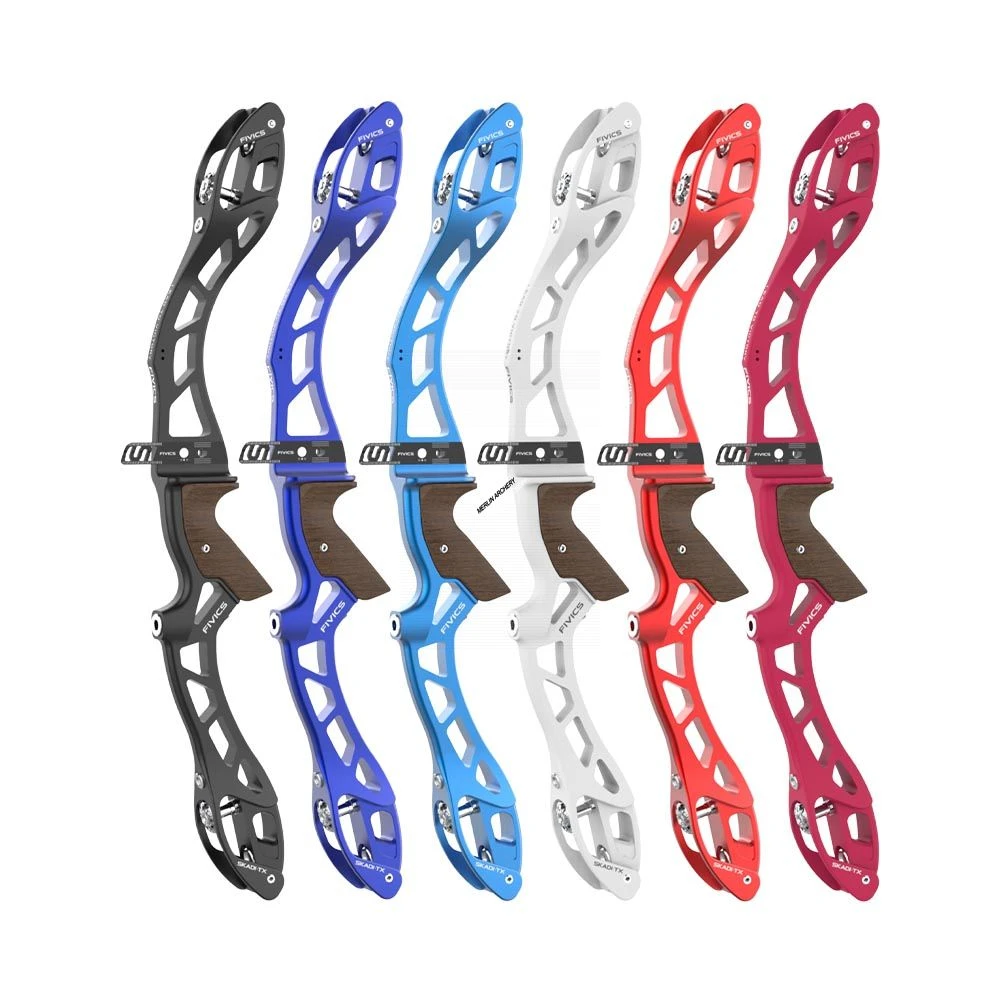

Available in 6 colours:

• Blue               –  (anodized)
• Sky Blue         –  (anodized)

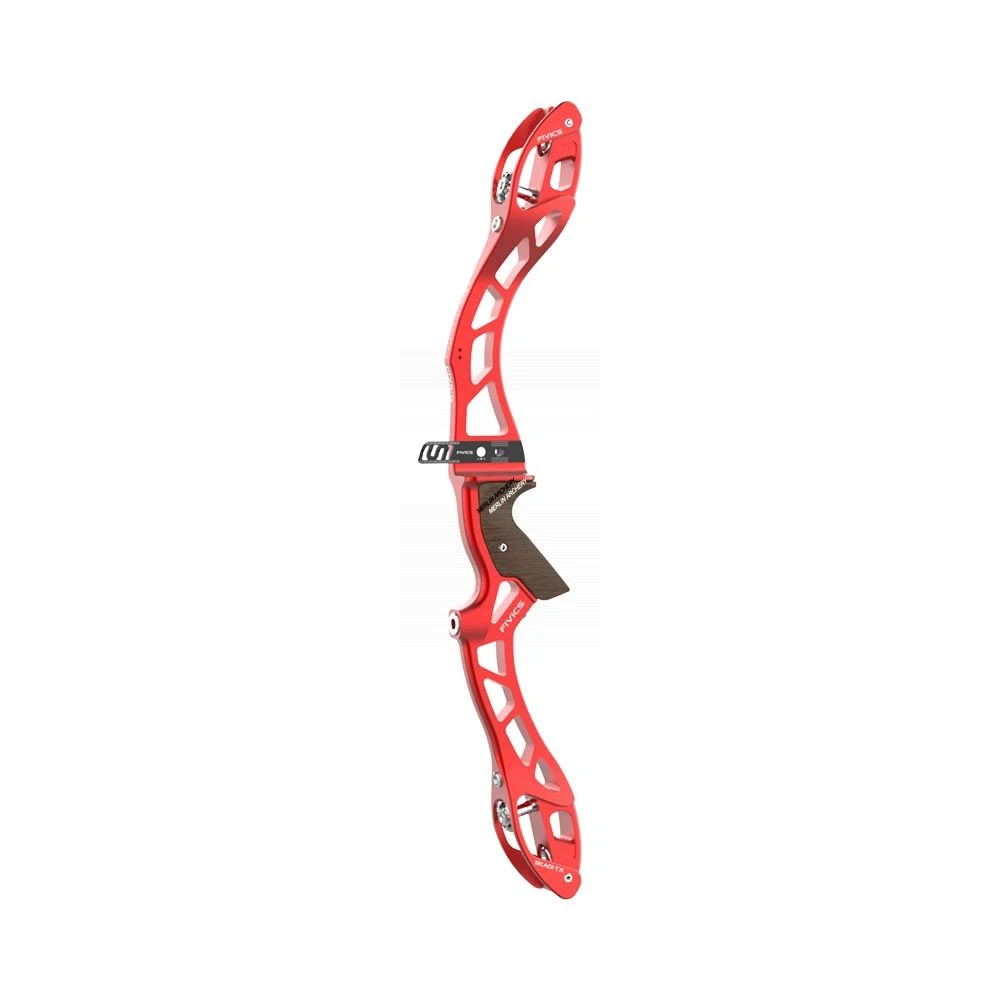

• Red                –  (anodized)

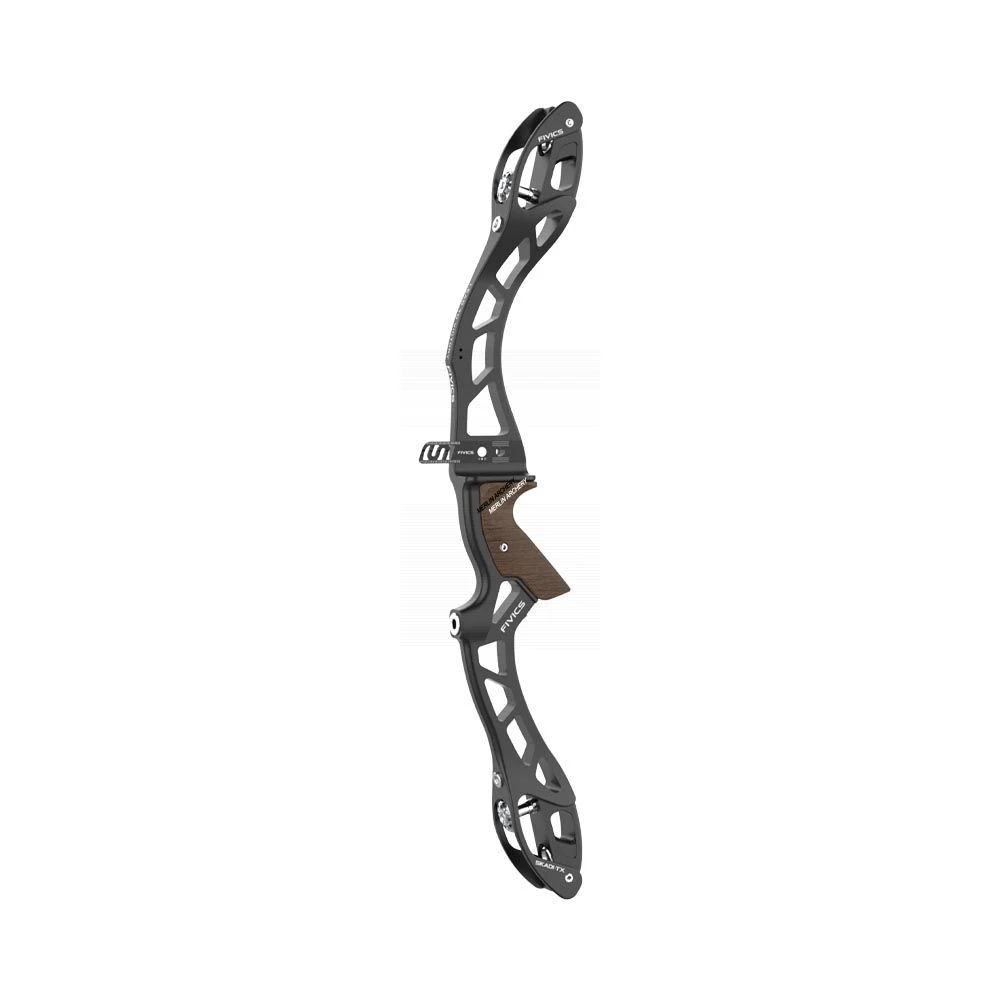

• Black              –  (anodized)
• White             –  (painted)
• Viva Magenta  –  (painted)

Weight: 1314g

Material: AL 6061, Tungsten

Length: 25″
